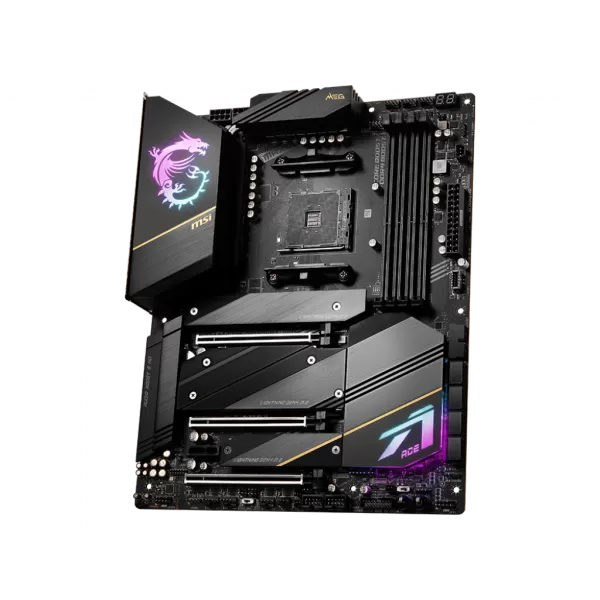

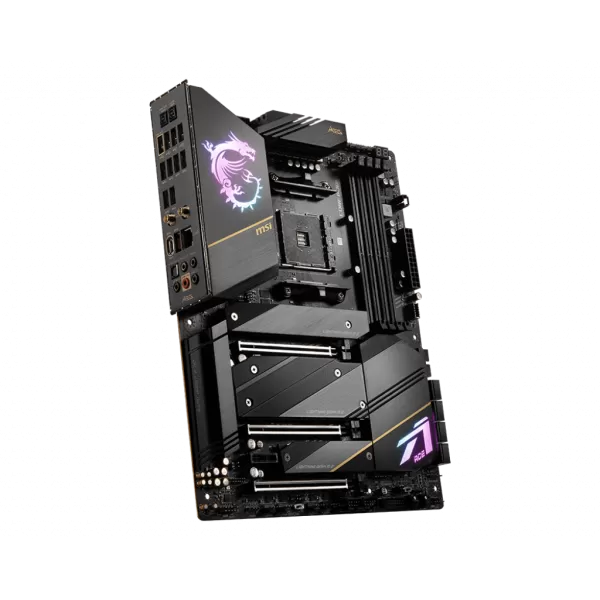

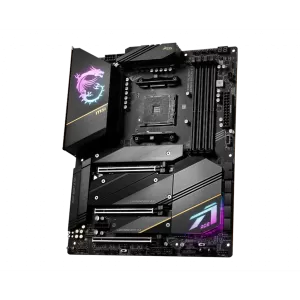

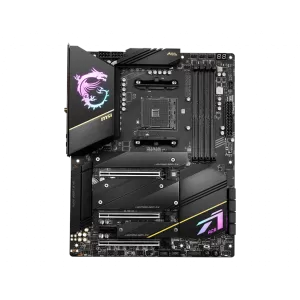

Placa de baza MSI MEG X570S ACE MAX, Socket AM4
Cod produs: MEG X570S ACE MAX
ID produs: 392299
Produsul nu mai face parte din oferta
Garantie conformitate:
24 luni
Garantie PF:
24 luni
Garantie PJ:
24 luni
Cost transport prin Fan Courier:
Cere Info:
(031) 405.23.59
Produse asemanatoare
MEG X570S ACE MAX/.
| Caracteristici Placa de baza MSI MEG X570S ACE MAX, Socket AM4: | |
| CPU Socket | AM4 |
| Chipset | X570 |
| Procesoare suportate | AM4 Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Vega Series Graphics |
| Audio integrat | Realtek ALC4082 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek RTL8125B |
| Interfata Serial ATA | 8 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 3 |
| HDMI | Nu |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | Nu |

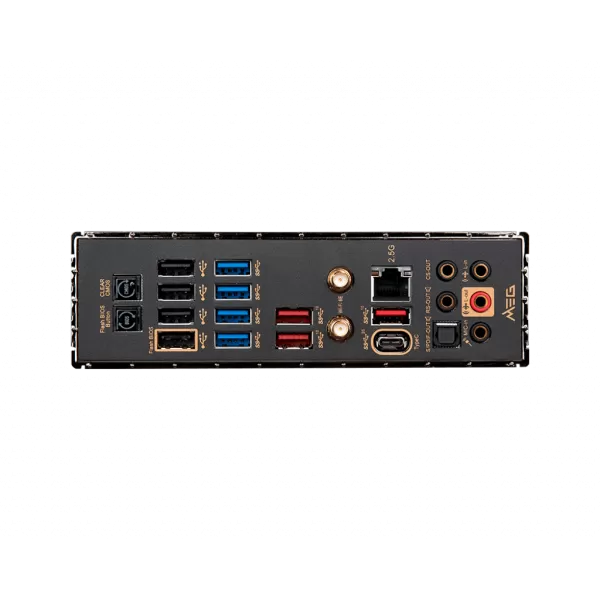

| Porturi externe | Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16 sau x8/x8) |
| Sloturi M.2 | 4 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
Produsul a fost adaugat pe site in data de 16.11.2021
| Placa de baza MSI MEG X570S ACE MAX, Socket AM4 | |
| CPU Socket | AM4 |
| Chipset | X570 |
| Procesoare suportate | AM4 Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Vega Series Graphics |
| Audio integrat | Realtek ALC4082 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek RTL8125B |
| Interfata Serial ATA | 8 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 3 |
| HDMI | Nu |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | Nu |
| Porturi externe | Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16 sau x8/x8) |
| Sloturi M.2 | 4 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
